Tungsten




Properties

      Highest melting point of all metals: 3,420 degrees Celsius/6,188 degrees Fahrenheit (iron = 1,536 degrees Celsius/2,768

         degrees Fahrenheit)

       High density: 19.3 g/cm³

       Low vapor pressure

       Low thermal expansion

       Good thermal conductivity

Rank Nominal Tungsten Content And Weight
%		 Density，g/cm3 Hardness AB，Rockwell C Maximum
1 90 16.85~17.25 32
2 92.5 17.15~17.85 33
3 95 17.75~18.35 34
4 97 18.25~18.85 35
A If there are provisions from the buyer, can adopt other hardness test method
B For the machined or aging materials, hardness can be up to Rc46

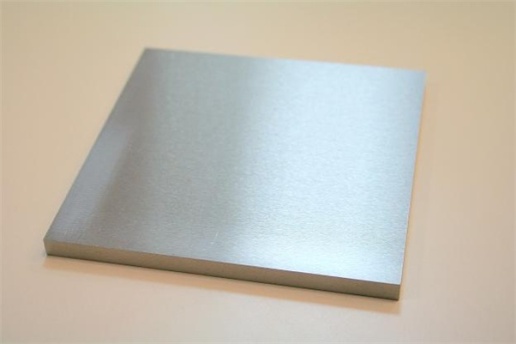

Tungsten Medium Plate



Chemical Component
​
Element Component, Maximum% The Allowable Deviation Of Validation Analysis
%
carbon 0.010 ±0.002
oxygen 0.010 +10%（relative value）
nitrogen 0.010 +0.005
iron 0.010 +0.001
nickel 0.010 +0.001
silicon 0.010 +0.001
